1. 5V-24V input, suitable for a variety of engineering wiring voltages.
2. Both input and output have protection circuits.
3. Differential signal input and output.
4. The wiring distance between the transmitter and receiver can reach more than 100 meters.

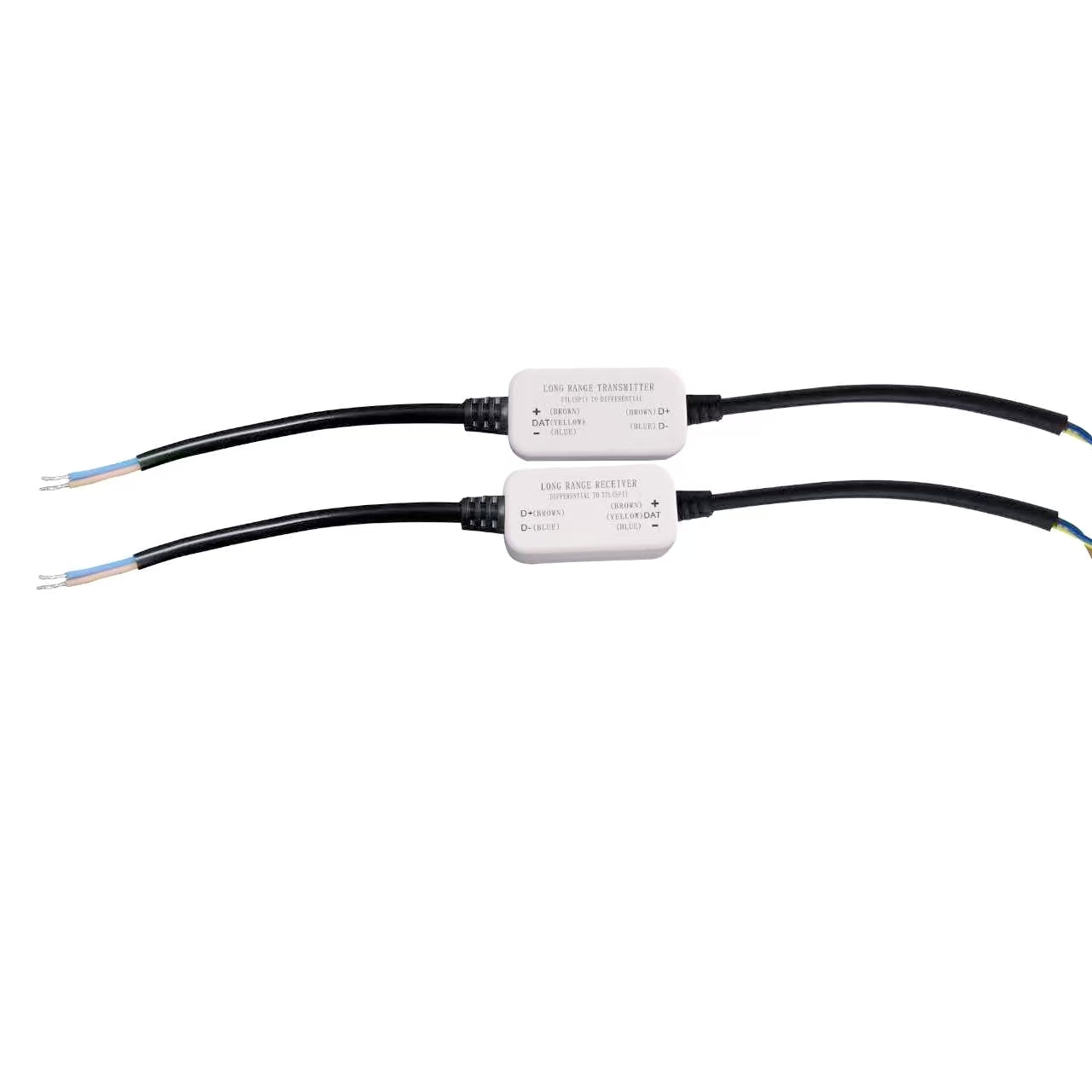

Welcome to use this single channel SPI long range transmitter/receiver, this model is designed for the SPI signal due to the distance problem is not enough. The transmitter is TTL to differential signal output, and the receiver is differential signal to TTL, in this way, it can solve the problem of SPI signal distance limitation in many projects.
Feature
function:
1. 5V-24V input, suitable for a variety of engineering wiring voltages.
2. Both input and output have protection circuits.
3. Differential signal input and output.
4. The wiring distance between the transmitter and receiver can reach more than 100 meters.
Product
parameter：
Model | Single channel SPI long range transmitter | Single channel SPI long range receiver |
Input voltage | 5V-24V |
Output voltage | TTL (SPI) | Differential signal |
Output signal | Differential signal | TTL (SPI) |
Input signal interface type | Wire bonding | Wire bonding |
Output signal interface type | Wire bonding | Wire bonding |
Working Temp | -20°C~55°C |
Dimension | L43 x W22 x H11 (mm) |
Weight(G.W.) | 6.5g |
