Q: What is the ideal transmission distance for DMX signals? What are the solutions if this distance cannot be achieved?
A: The ideal transmission distance of DMX signals can reach up to 150 meters. However, external factors such as high-voltage interference and ambient electromagnetic radiation will significantly degrade the actual transmission stability. The technology team of Bincolor points out that in complex engineering environments, external interference can lead to signal attenuation and distortion. If the cabling is arranged in accordance with the ideal distance, problems like light flickering and control latency are highly likely to occur.
Solutions:
1. To ensure signal stability, a signal amplifier should typically be installed every 40–50 meters during actual cabling. Bincolor’s BC-812 and BC-812-RDM models are standalone, electrically isolated DMX signal amplifiers. With their superior anti-interference performance and user-friendly installation design, these amplifiers have become the preferred accessories for numerous large-scale projects, effectively resolving signal attenuation issues in long-distance transmission.
2.Specifications for the connection distances between devices are equally critical. The ideal distance between DMX decoders is recommended to be within 40 meters. In practical applications, a signal amplifier should be installed when this distance exceeds 40–45 meters. Additionally, the connection distance between a decoder and the first power repeater should also be restricted to the range of 40–50 meters. Notably, if the number of decoders exceeds 32, a signal amplifier must be installed to mitigate signal load pressure—even if the aforementioned distance threshold has not been reached.
Q2: How many LED power repeaters can be connected to the DMX512 decoder, and how far can it reach?
Bincolor offers a comprehensive range of DMX512 decoders, including the 5-channel BC-835-DIN/RJ45, 4-channel BC-854/834, and 3-channel BC-853/833 models. These decoders are compatible with LED power repeaters of different channel configurations, fulfilling the diverse requirements of various projects. While power repeaters can theoretically be connected in parallel infinitely, a power repeater with no light fixtures attached can be connected in series to function as a signal amplifier when the number of connected repeaters exceeds 30 units, or when the transmission distance exceeds 30–50 meters. This flexible solution has been validated in multiple large-scale venue projects undertaken by Bincolor.
Q3: How does a power-type DMX512 decoder calculate pixel points?
A single DMX512 dimming system universe can output a maximum of 512 control channels. The specific number of decoders that can be connected is determined by the channel count of each decoder.
Calculation method: Total available channels (512) ÷ Number of channels per DMX512 decoder = Maximum number of connectable decoders
For example, up to 170 units of 3-channel DMX decoders can be connected, while the maximum number of connectable 4-channel DMX decoders is 128 units.
Reasonable channel configuration planning can not only avoid resource waste, but also mitigate signal congestion and enhance the overall response speed of the system.
Q4:Which type of cable is recommended for DMX512 signal transmission?

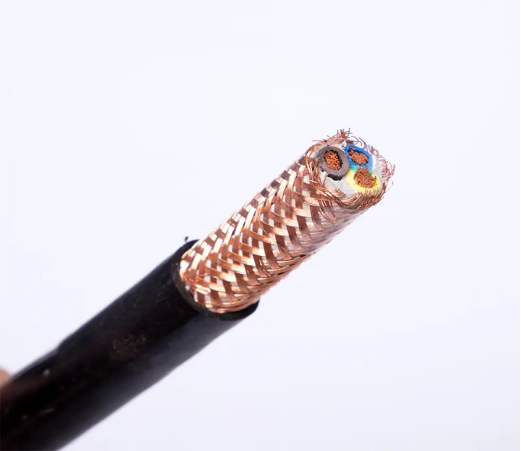

Standardized cabling practices are critical to ensuring stable DMX512 signal transmission quality. Industry standards explicitly mandate the use of shielded cables for DMX signal transmission, with routing paths kept well away from high-voltage power lines. Three-core shielded cable is strongly recommended, as it delivers robust resistance to electromagnetic interference. Magnetic fields emitted by high-voltage lines can severely disrupt DMX signal integrity—and these often-overlooked details are key determinants of a project’s success or failure.
The DMX512 system has been widely adopted in various large-scale projects, including smart parks, commercial complexes, and architectural lighting installations. Bincolor’s DMX control system solutions have earned high recognition from customer for their stable transmission performance and precise control effects. Going forward, Bincolor will continue to deepen its investment in technological R&D, share more project-specific practical experience and technical insights via its official website, promote the standardization of industry construction practices, and further empower DMX technology to better serve a wide range of lighting art and intelligent lighting engineering projects.
